ECO S SERIES WATER PUMP
Please scroll down page to view FLOW CURVES
All our pices include V.A.T. with :
|
|
 |
| ECO-S5000 Water Pump (1111 ltrs / hr) |
 Eco-S 5000 Ltr Solid Handling Water pump
These pumps can also be used dry mounted inline just like the Aquamax range by taking off the front cage, They have the same 1.5 inch threaded inlet and outlet.
The Eco-s also has a built in thermal overload safety device to protect the pump.
5500 ltrs/hr water pump.
SPECIFICATIONS
Maximum flow: 5800 ltrs/hr (1111) gls.
Maximum head: 2.5 meters
Suction: 1.1/2" BSP
Delivery: 1.1/2" BSP
Power: 60 watts
Cable length 10 mtrs
Dimensions: 320 x 145 x 180mm
Availble To Order Very Soon |
| ECO-S6000 Water Pump (6100 ltrs / hr) |
 Eco-S 6000 Ltr Solid Handling Water pump
These pumps can also be used dry mounted inline just like the Aquamax range by taking off the front cage, They have the same 1.5 inch threaded inlet and outlet.
The Eco-s also has a built in thermal overload safety device to protect the pump.
Best Seller
6100 ltrs/hr water pump.
SPECIFICATIONS
Maximum flow: 6100 ltrs/hr (1300) gls.
Maximum head: 2.6 meters
Suction: 1.1/2" BSP
Delivery: 1.1/2" BSP
Power: 65 watts
Cable length 10 mtrs
Dimensions: 320 x 145 x 180mm
|
| ECO-S8000 Water Pump (7800 ltrs / hr) |
Eco-S 8000 Ltr Solid Handling Water pump
These pumps can also be used dry mounted inline just like the Aquamax range by taking off the front cage, They have the same 1.5 inch threaded inlet and outlet.
The Eco-s also has a built in thermal overload safety device to protect the pump.
Best Seller
7800 ltrs/hr water pump.
SPECIFICATIONS
Maximum flow: 7800 ltrs/hr (1700) gls.
Maximum head: 4.0 meters
Suction: 1.1/2" BSP
Delivery: 1.1/2" BSP
Power: 80 watts
Cable length 10 mtrs
Dimensions: 320 x 145 x 180mm
|
| ECO-S10000 Water Pump (10000 ltrs / hr) |
 Eco-S 10000 Ltr Solid Handling Water pump
These pumps can also be used dry mounted inline just like the Aquamax range by taking off the front cage, They have the same 1.5 inch threaded inlet and outlet.
The Eco-s also has a built in thermal overload safety device to protect the pump.
10000 ltrs/hr water pump.
SPECIFICATIONS
Maximum flow: 10000 ltrs/hr (2222) gls.
Maximum head: 4.5 meters
Suction: 1.1/2" BSP
Delivery: 1.1/2" BSP
Power: 135 watts
Cable length 10 mtrs
Dimensions: 320 x 145 x 180mm
Availble To Order Very Soon |
| ECO-S12000 Water Pump (11300 ltrs / hr) |
Eco-S 12000 Ltr Solid Handling Water pump
These pumps can also be used dry mounted inline just like the Aquamax range by taking off the front cage, They have the same 1.5 inch threaded inlet and outlet.
The Eco-s also has a built in thermal overload safety device to protect the pump.
Best Seller
11300 ltrs/hr water pump.
SPECIFICATIONS
Maximum flow: 11300 ltrs/hr (2500) gls.
Maximum head: 4.5 meters
Suction: 1.1/2" BSP
Delivery: 1.1/2" BSP
Power: 155 watts
Cable length 10 mtrs
Dimensions: 320 x 145 x 180mm
|
| ECO-S15000 Water Pump (15200 ltrs / hr) |
 Eco-S 15000 Ltr Solid Handling Water pump
These pumps can also be used dry mounted inline just like the Aquamax range by taking off the front cage, They have the same 1.5 inch threaded inlet and outlet.
The Eco-s also has a built in thermal overload safety device to protect the pump.
Best Seller
15200 ltrs/hr water pump.
SPECIFICATIONS
Maximum flow: 15200 ltrs/hr (3300) gls.
Maximum head: 5.5 meters
Suction: 1.1/2" BSP
Delivery: 1.1/2" BSP
Power: 210 watts
Cable length 10 mtrs
Dimensions: 410 x 155 x 189mm
|
 Eco-S 20000 Ltr Solid Handling Water pump
These pumps can also be used dry mounted inline just like the Aquamax range by taking off the front cage, They have the same 1.5 inch threaded inlet and outlet.
The Eco-s also has a built in thermal overload safety device to protect the pump.
Best Seller
20000 ltrs/hr water pump.
SPECIFICATIONS
Maximum flow: 20000 ltrs/hr (4440) gls.
Maximum head: meters
Suction: 1.1/2" BSP
Delivery: 1.1/2" BSP
Power: 210 watts
Cable length 10 mtrs
Dimensions: 410 x 155 x 189mm |

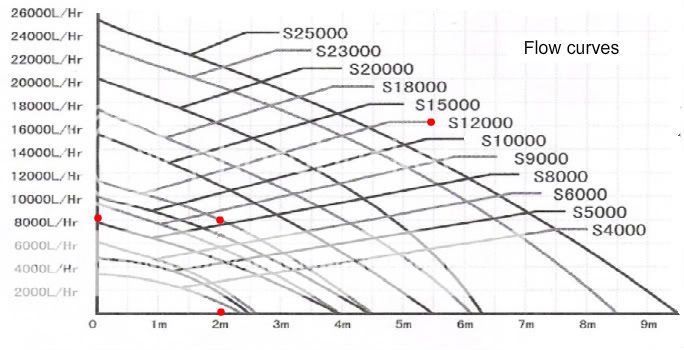

| Flow Curves for above ECO-series Pumps |
Performance curves for the above ECO-S Series Pond Water pumps.
Example The S-12000 is required to pump a total head of 2.0 mtrs.To find the flow rate at this head.
From the 2.0 (Mtr.) mark on the Head (M) Lower axis move up to the relative curve in this case S-12000 and then move left to meet the Flow (L/H) axis and note the reading at this point.
It can now be seen that a Maximum of aproximately 8500 L/H flow will be available for a total head loss of 2.0 Mtrs.
Please note (Total Head loss = Head height + Friction loss in system ) See Total head loss for details
 |
|
